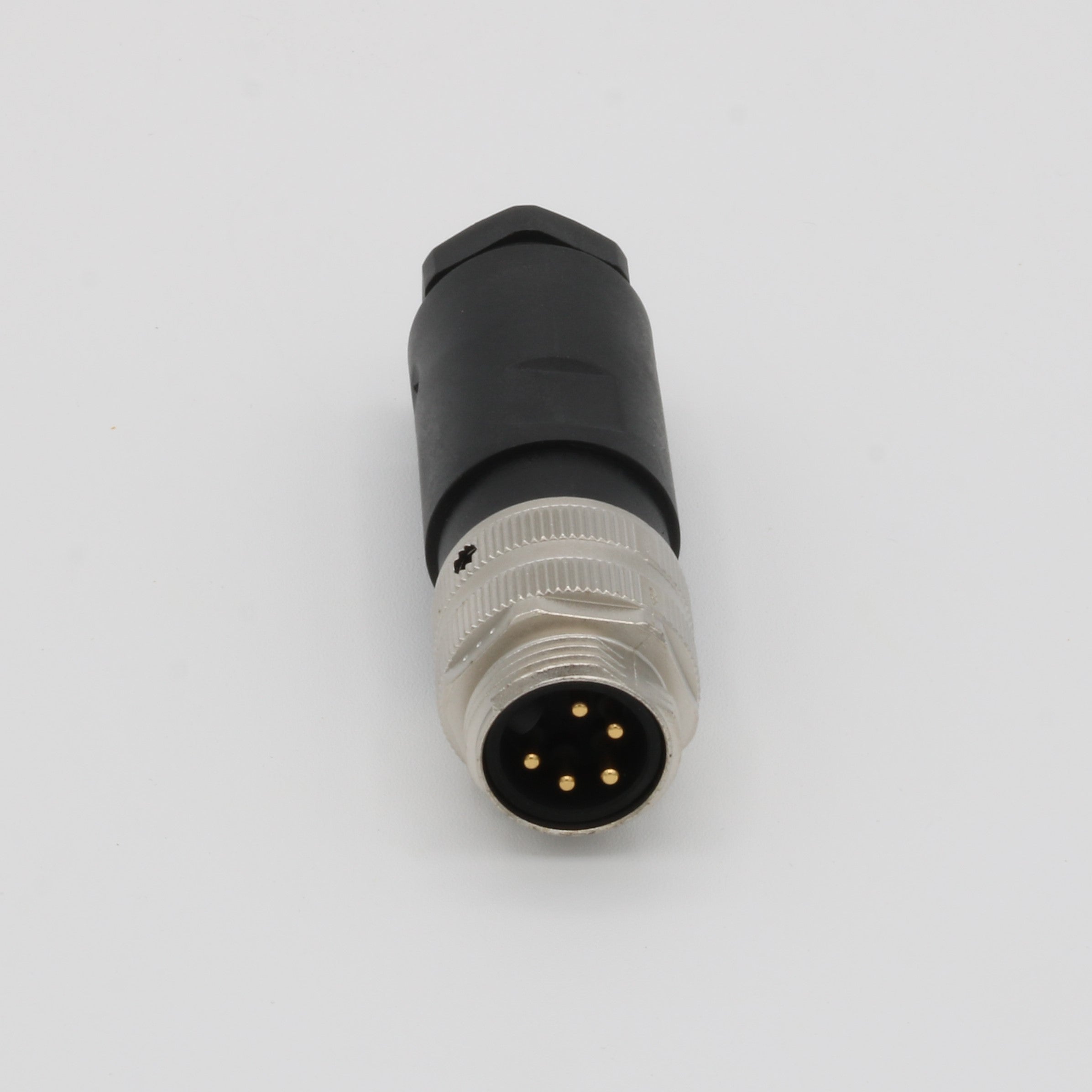

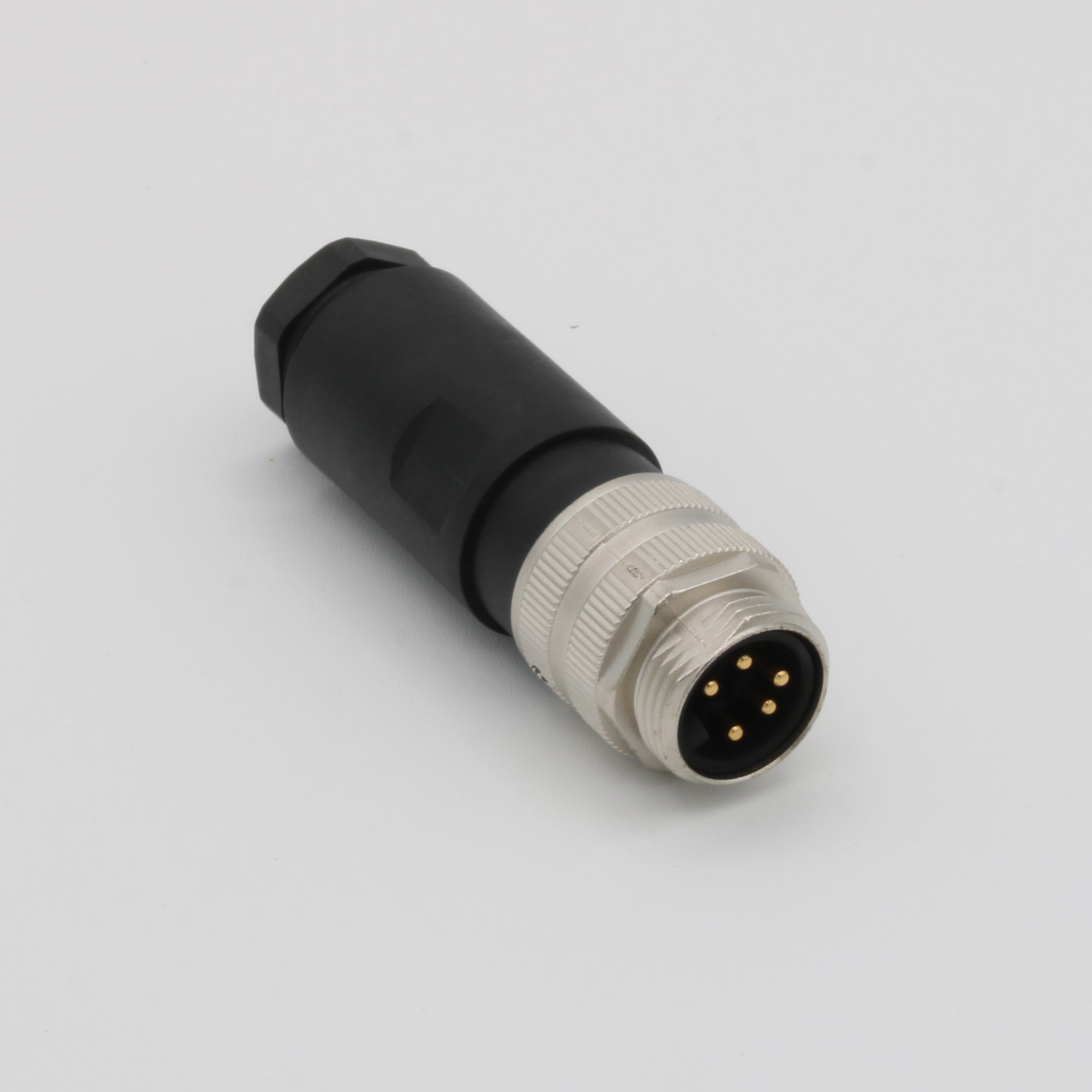

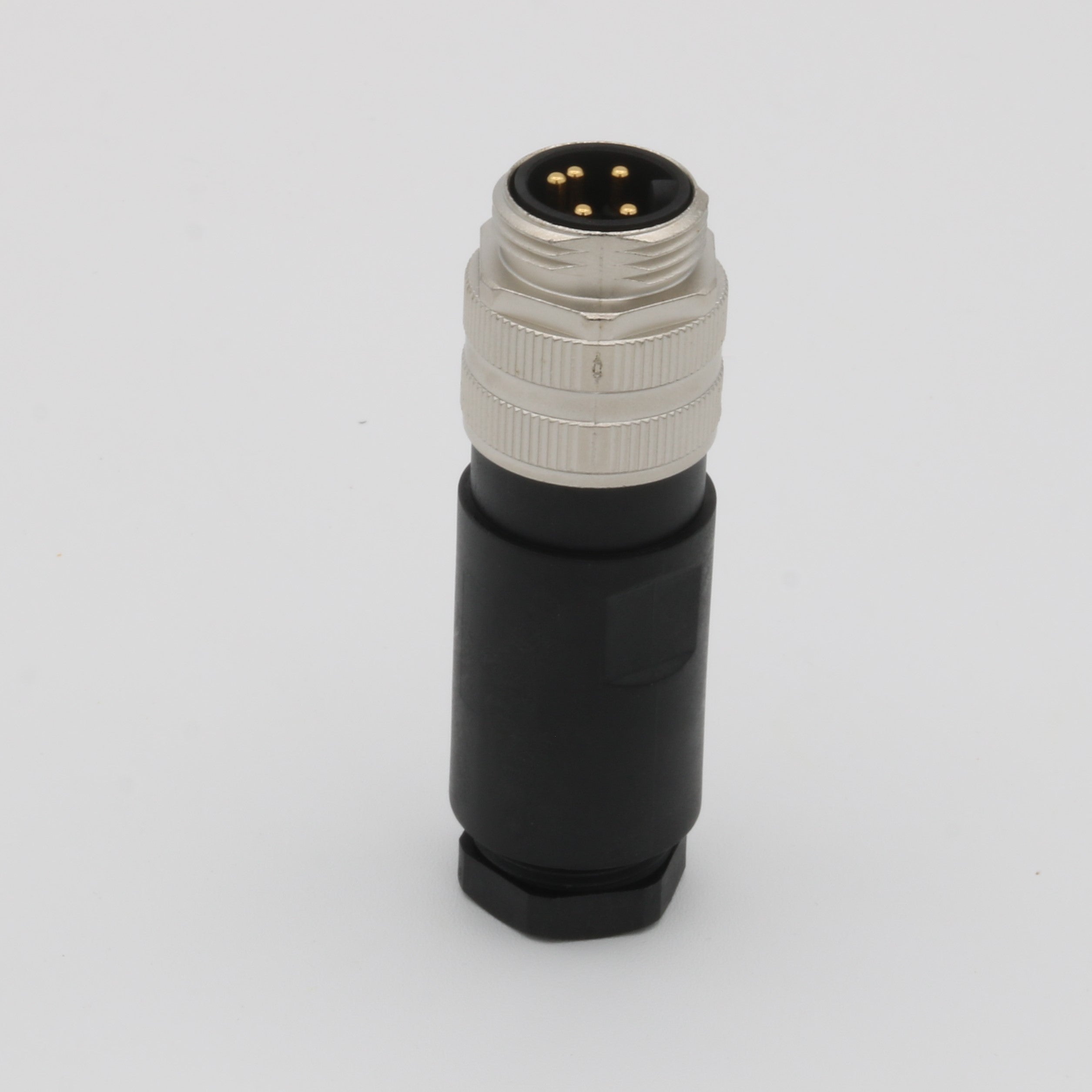

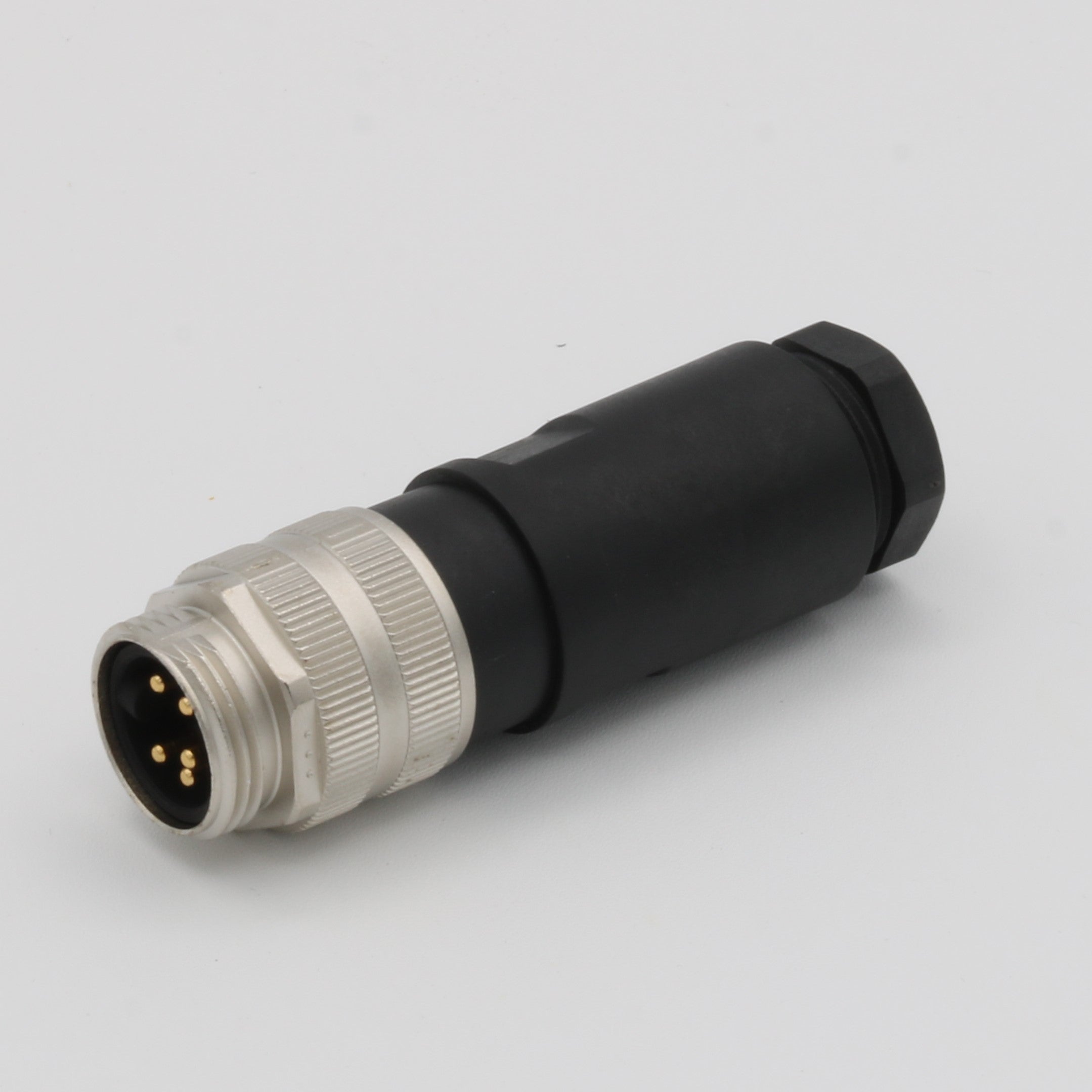

The Balluff BCC0ATF is a robust field attachable connector designed for secure transmission of signals, data, and power in industrial environments. It features a 7/8"-16 UN male straight 5-pin connection with screw terminals for wire mounting, accommodating a cable diameter of 12 to 14 mm. The operating voltage is rated at 600 VDC / 600 VAC with a rated current of 9.0 A at 40°C. This connector is also IP67 rated, ensuring protection against dust and water immersion, and can operate within an ambient temperature range of -25 to 85°C.
