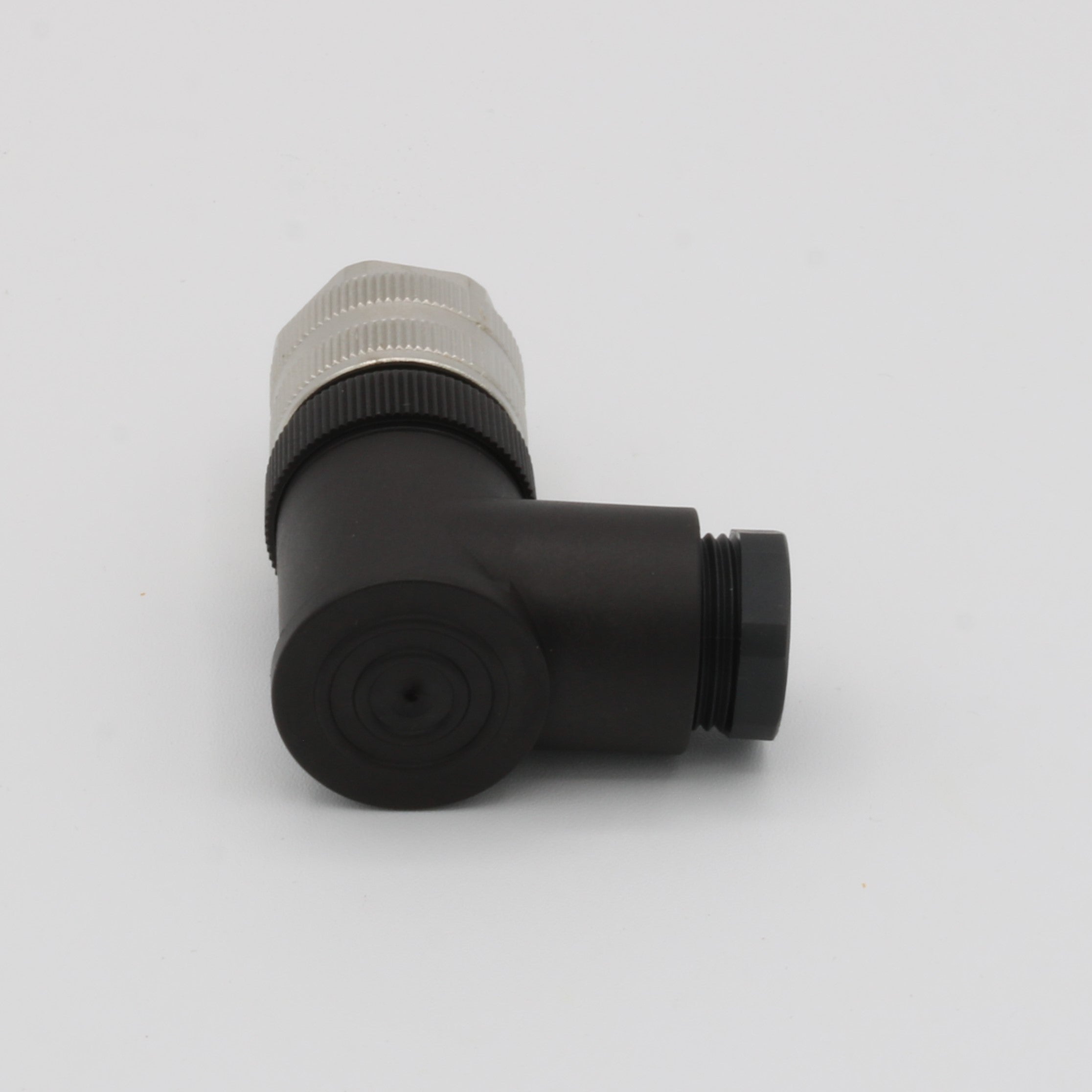

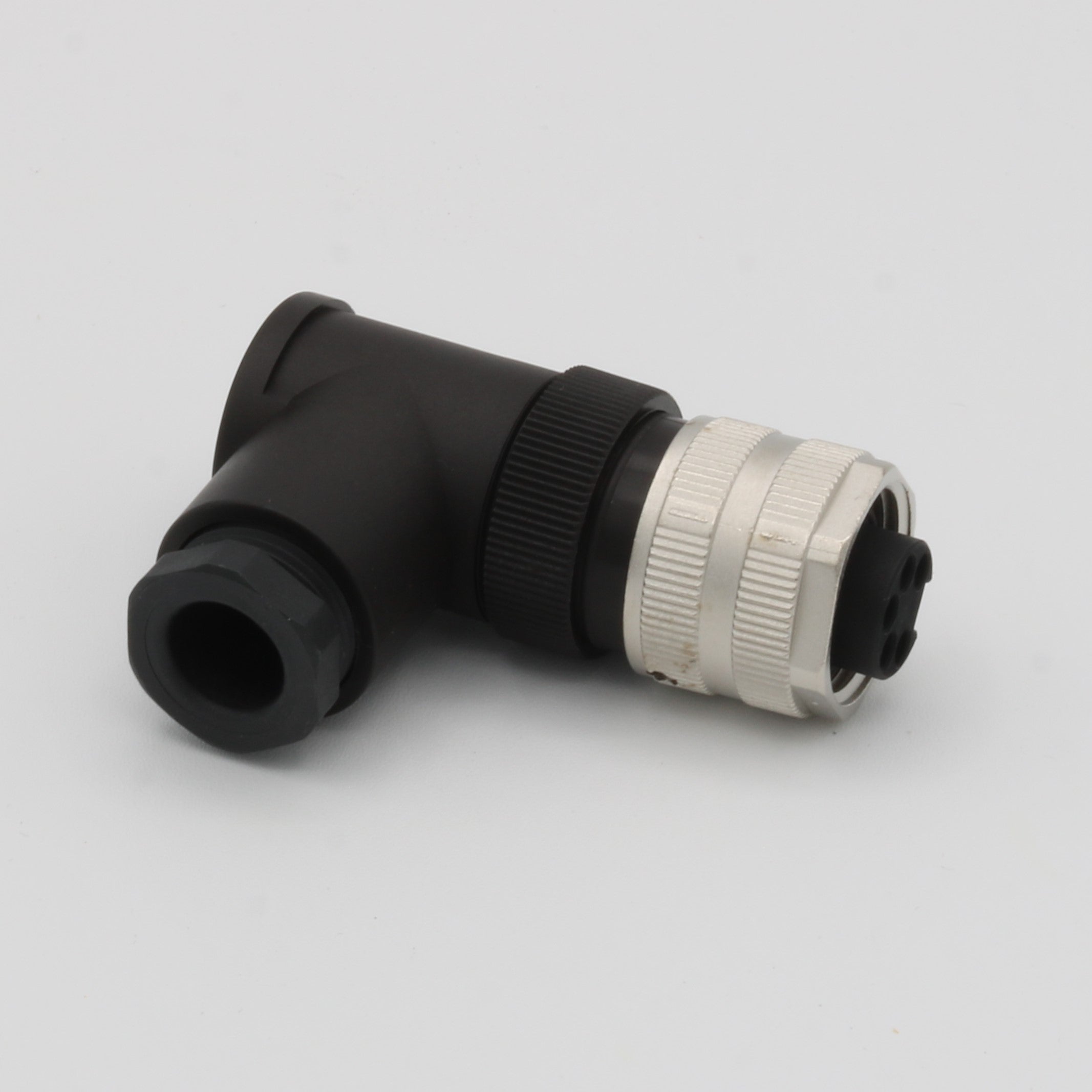

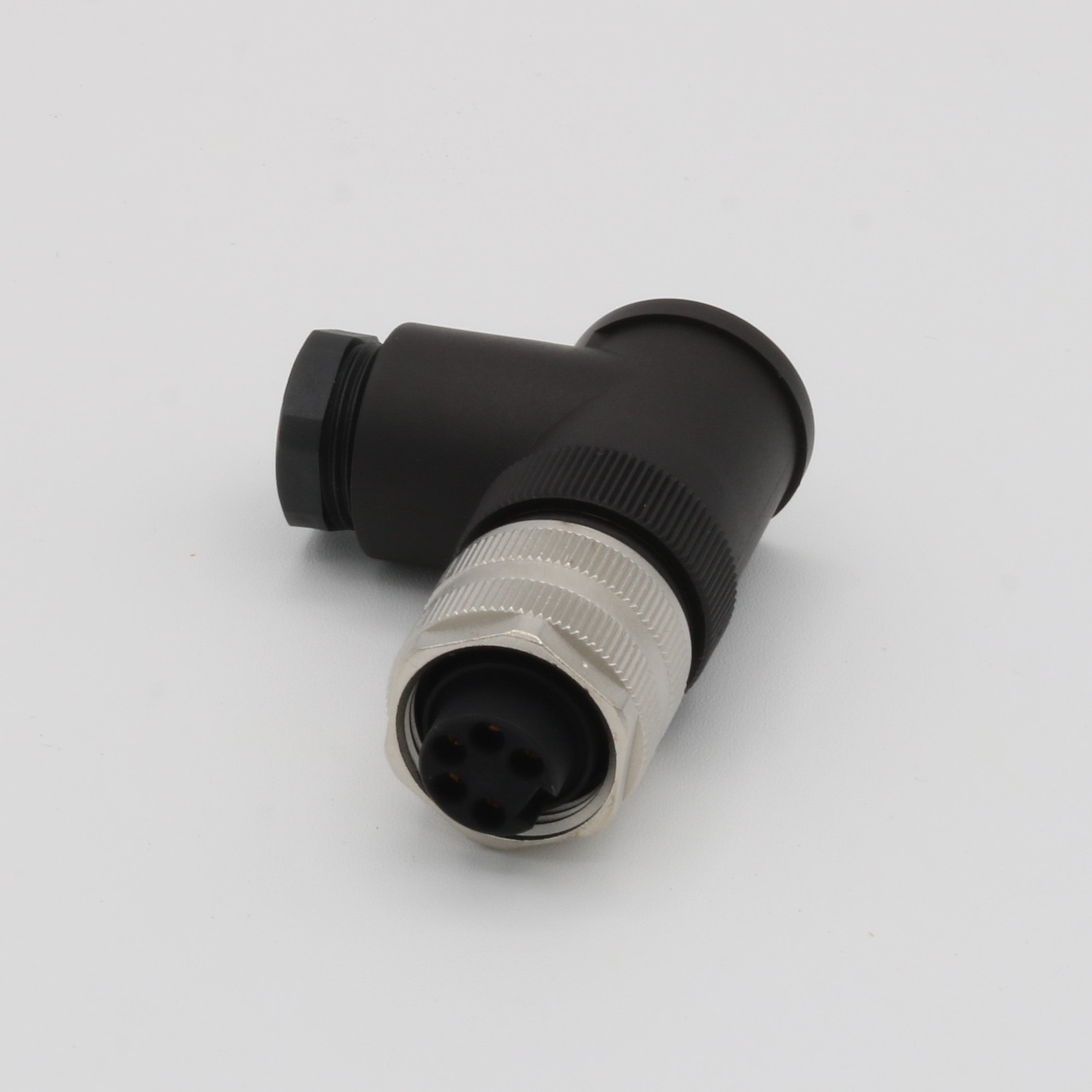

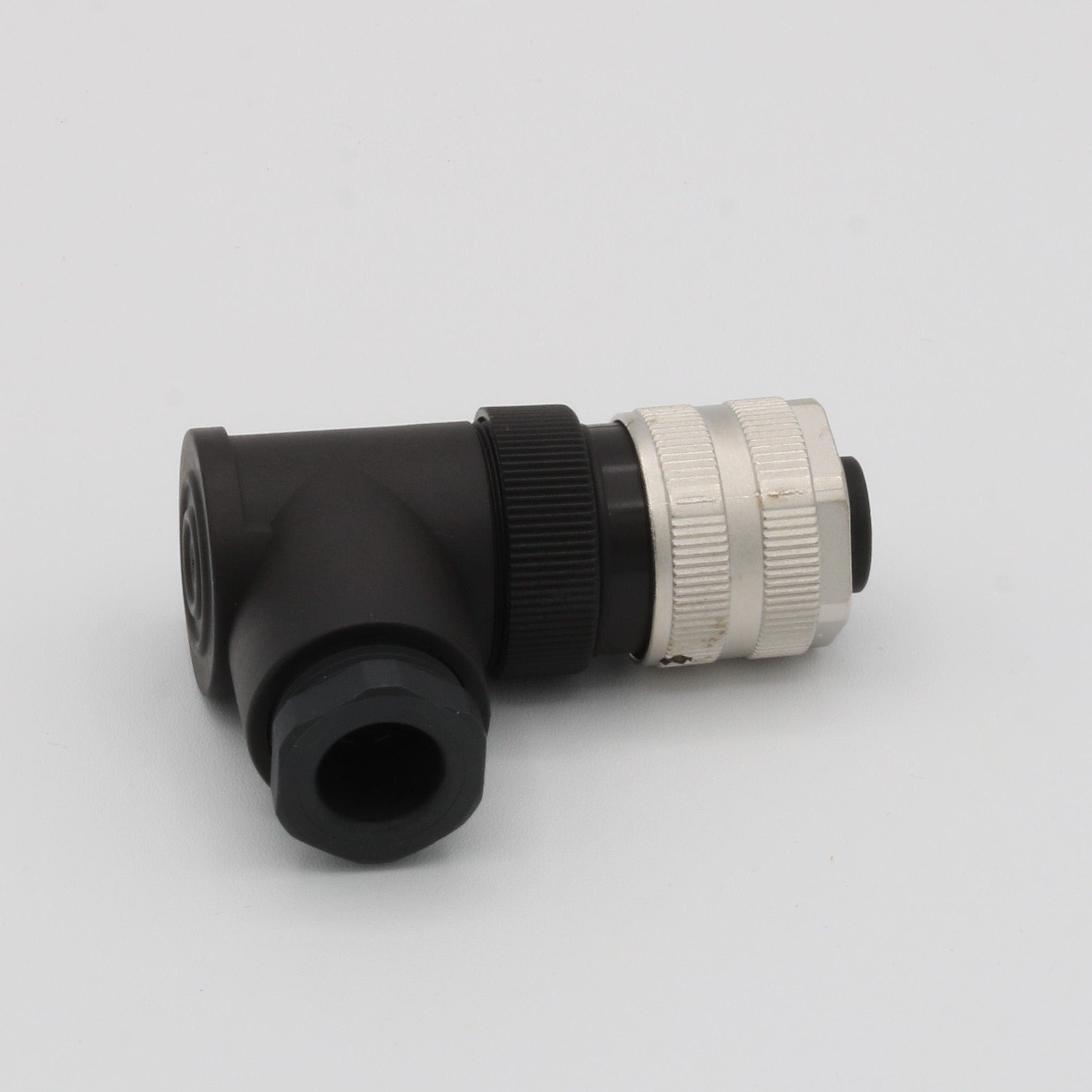

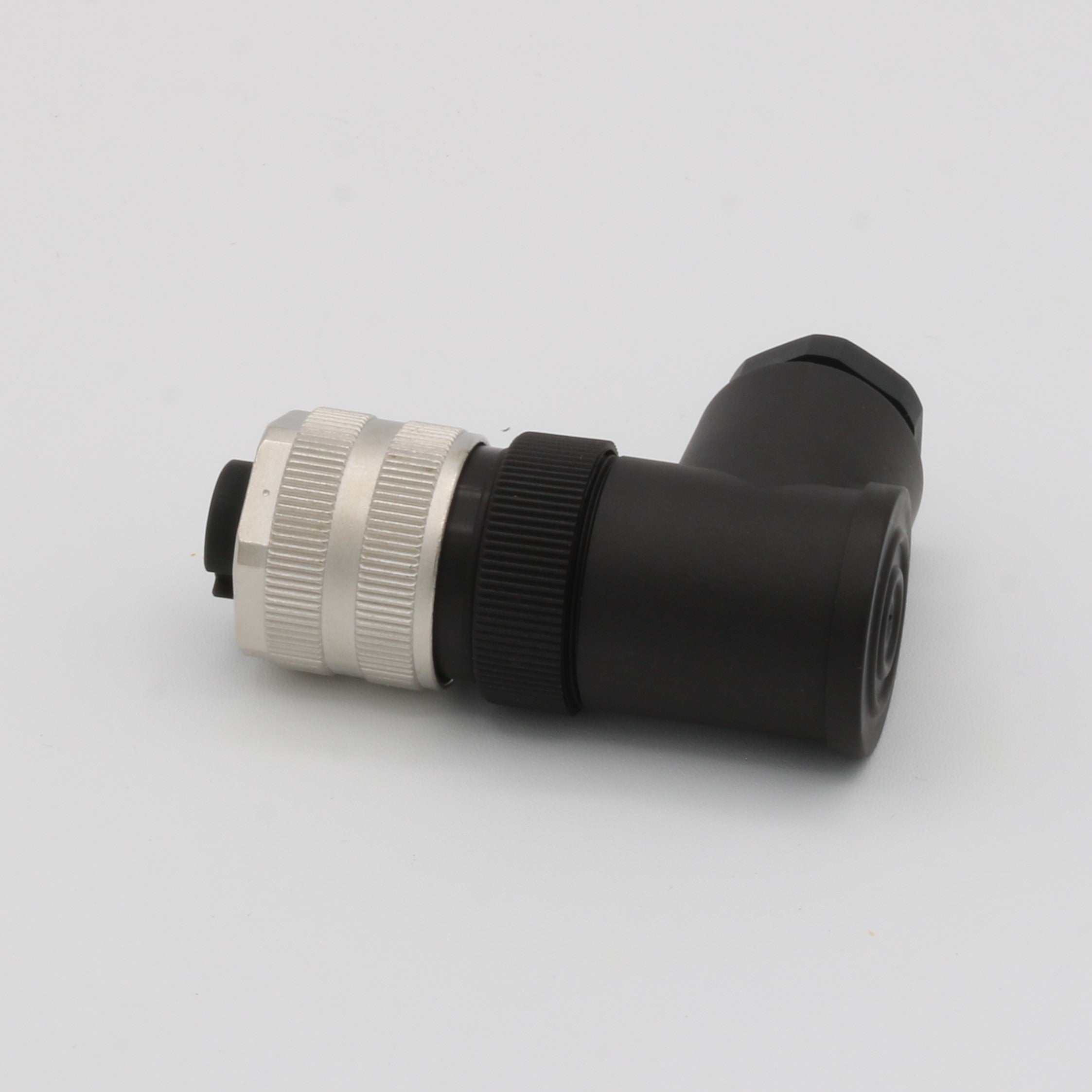

The Balluff BCC0FK3 is a field attachable connector that is designed for robust and secure signal, data, and power transmission. It features a 7/8"-16 UN-female, angled, 5-pin connection with the ability to connect up to five contacts. The connector supports a connection cross-section of 1.50 mm² and is equipped with screw terminals for wire mounting. It can handle an operating voltage of 600 VDC / 600 VAC and a rated current of 9.0 A at 40 °C. With an IP rating of IP67, it is well-suited for challenging industrial environments, maintaining performance within an ambient temperature range of -25 to 85 °C.
