BCC M415-M414-3A-606-EX44T2-050
BCC05MR
- Regular price
-
$39.40 - Regular price
-
$57.30 - Sale price
-
$39.40
Make sure you're logged in to get the best price!

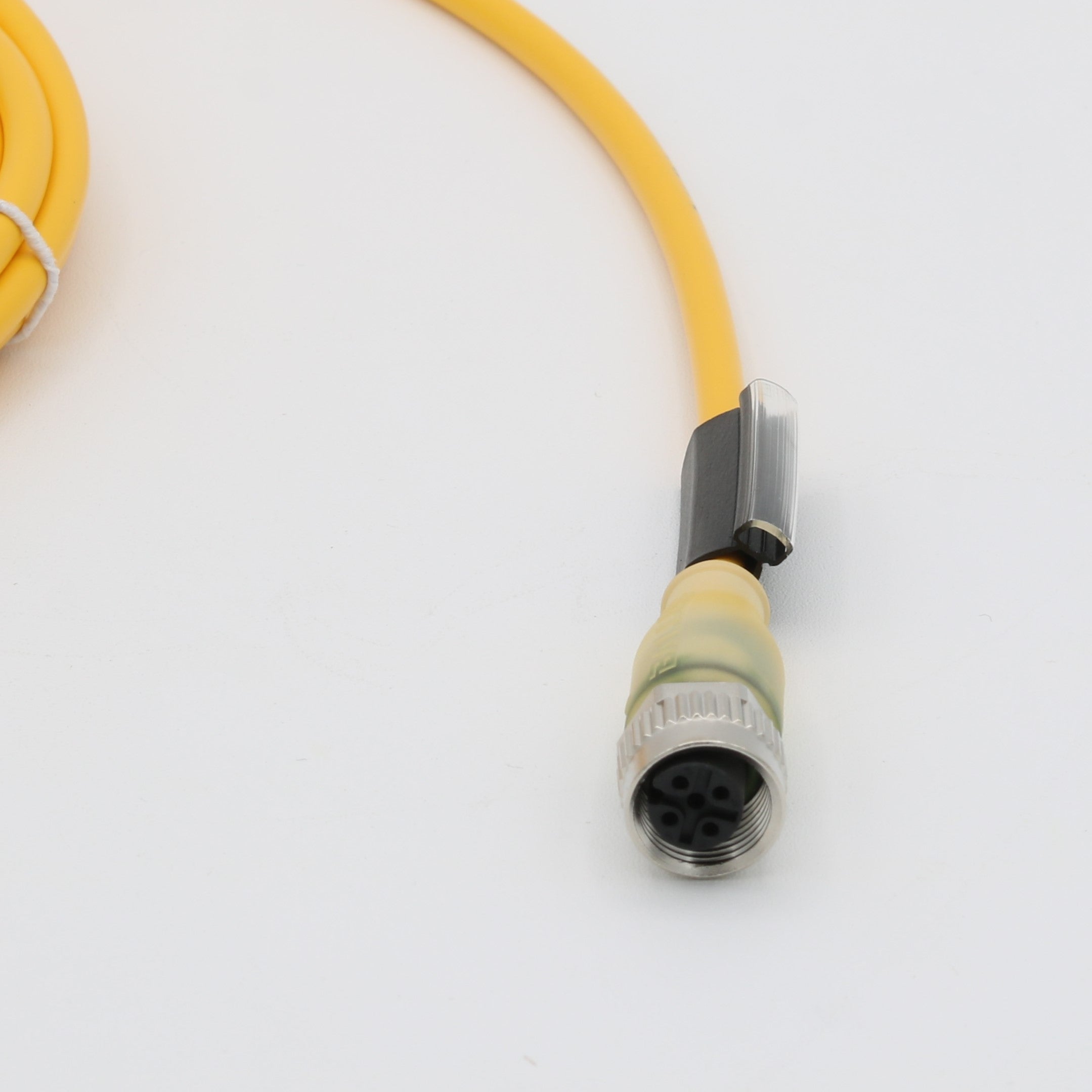

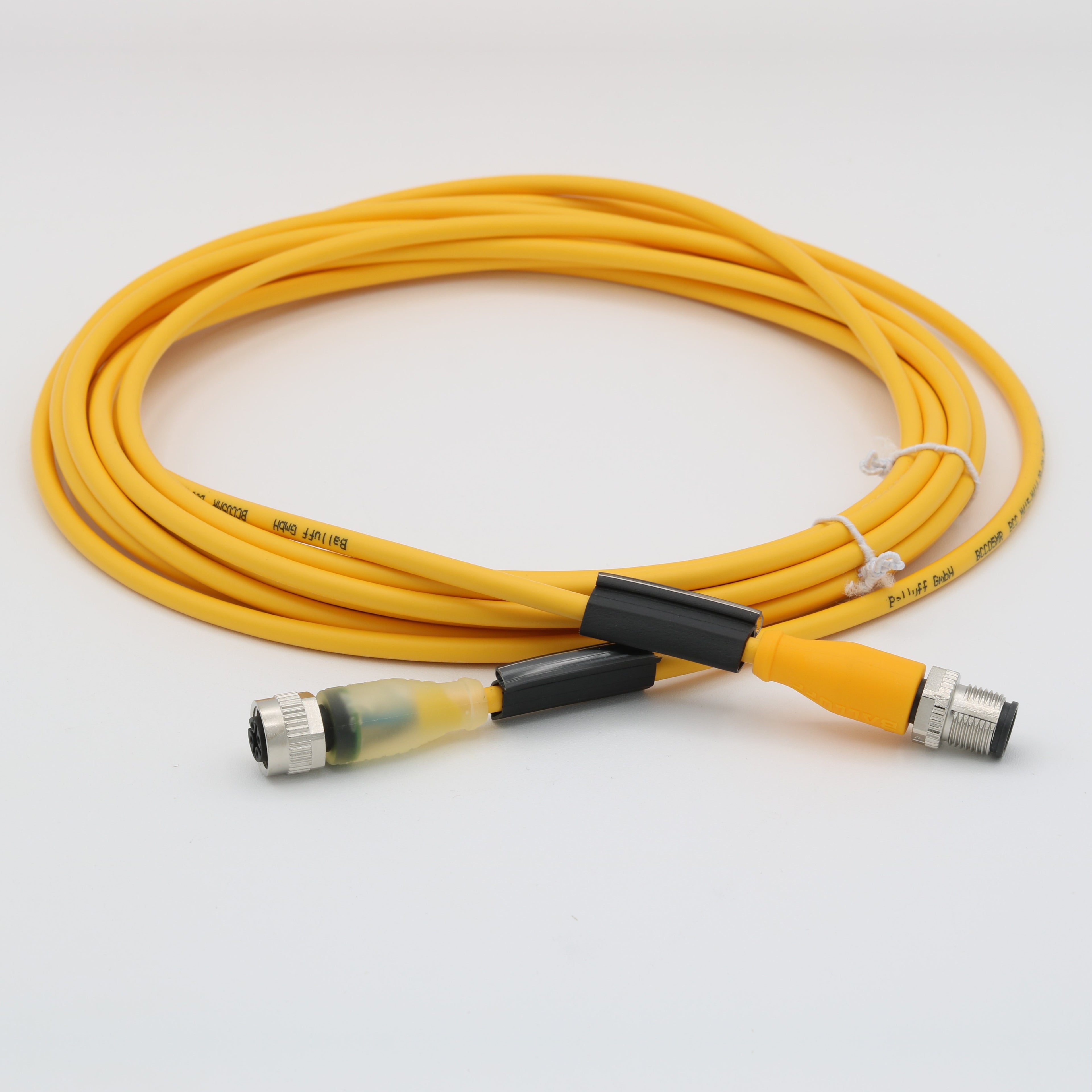

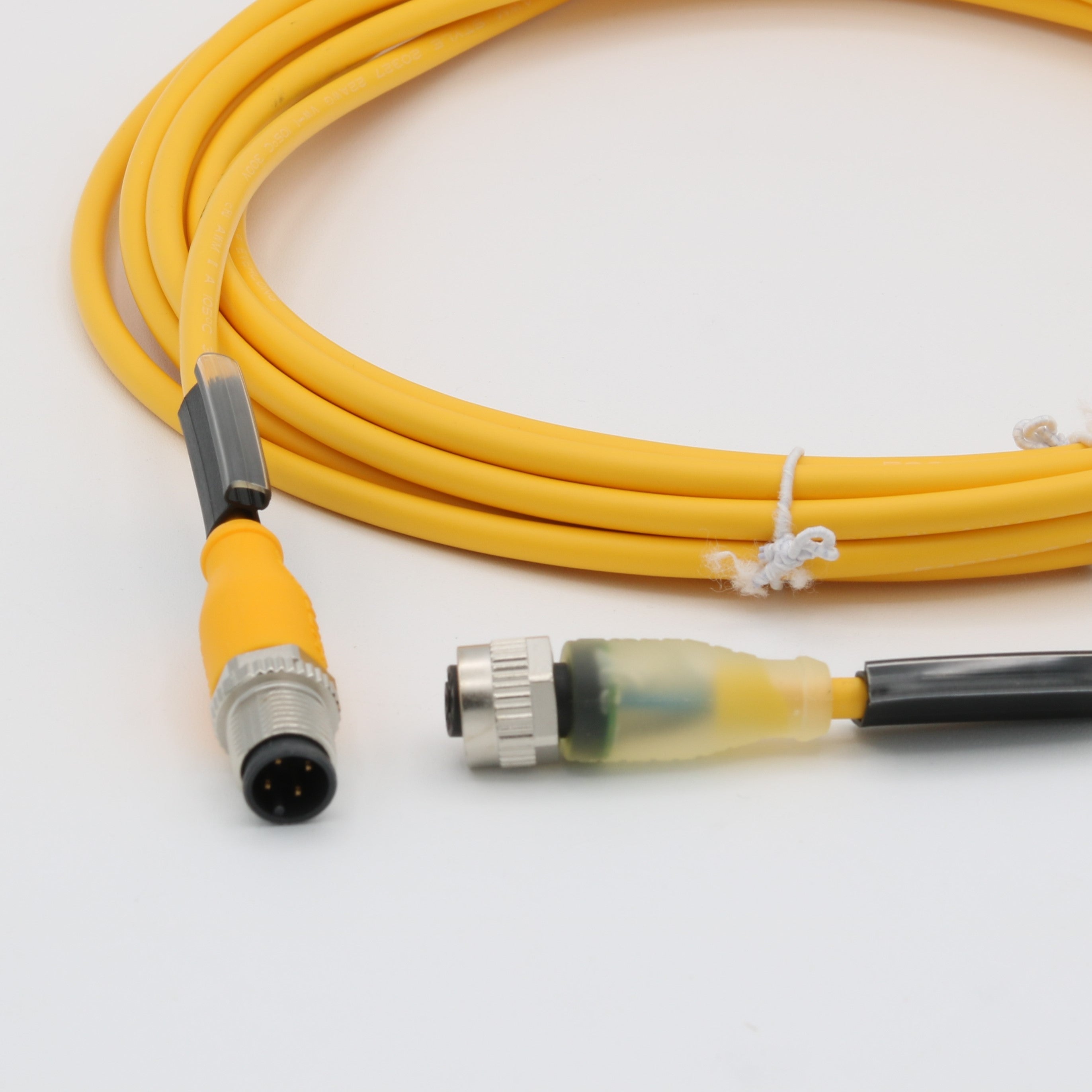

The Balluff BCC05MR (BCC M415‑M414‑3A‑606‑EX44T2‑050) is a rugged, high‑motion M12 double‑ended sensor/actuator cable that connects a straight 5‑pin A‑coded female to a straight 4‑pin A‑coded male over a 5 m drag‑chain‑compatible yellow TPE cable, ideal for reliable, plug‑and‑play wiring in modern automation cells. Engineered for durability, it delivers 30 VDC / 4.0 A through 4×22 AWG conductors with a minimum bending radius of 5×D, ensuring long service life and consistent signal integrity. Rated IP67/IP68/IP69K and specified for −50…105 °C (fixed) and −25…105 °C (flexible) operation, the BCC05MR stands up to washdown, vibration, and demanding duty cycles on the line. On‑cable LED diagnostics—green for power and yellow for Pin‑4 function—speed commissioning and troubleshooting, while CE/cULus/WEEE approvals provide compliance confidence across plants.
Couldn't load pickup availability
Component Specifications
Cable Length (m)
5.0
Electrical connector 1
M12 - A - Female - Straight - 5 Pin - LED
Electrical Connector 2
M12 - A - Male - Straight - 4 Pin
Cable Jacket
TPE
Conductors
4
Operating voltage
Current rating (A)
4.0
Max. Ambient Temp. (°C)
105
Min. Ambient Temp. (°C)
-50
Min. Flexible Ambient Temp. (°C)
-25
Certifications & Ratings
Component Details
Description
The Balluff BCC05MR (BCC M415‑M414‑3A‑606‑EX44T2‑050) is a rugged, high‑motion M12 double‑ended sensor/actuator cable that connects a straight 5‑pin A‑coded female to a straight 4‑pin A‑coded male over a 5 m drag‑chain‑compatible yellow TPE cable, ideal for reliable, plug‑and‑play wiring in modern automation cells. Engineered for durability, it delivers 30 VDC / 4.0 A through 4×22 AWG conductors with a minimum bending radius of 5×D, ensuring long service life and consistent signal integrity. Rated IP67/IP68/IP69K and specified for −50…105 °C (fixed) and −25…105 °C (flexible) operation, the BCC05MR stands up to washdown, vibration, and demanding duty cycles on the line. On‑cable LED diagnostics—green for power and yellow for Pin‑4 function—speed commissioning and troubleshooting, while CE/cULus/WEEE approvals provide compliance confidence across plants.
